Complex Searches

In BIM-and^® you can define arbitrary search criteria and extend those using a combination of “filters” in order to find elements within the model.

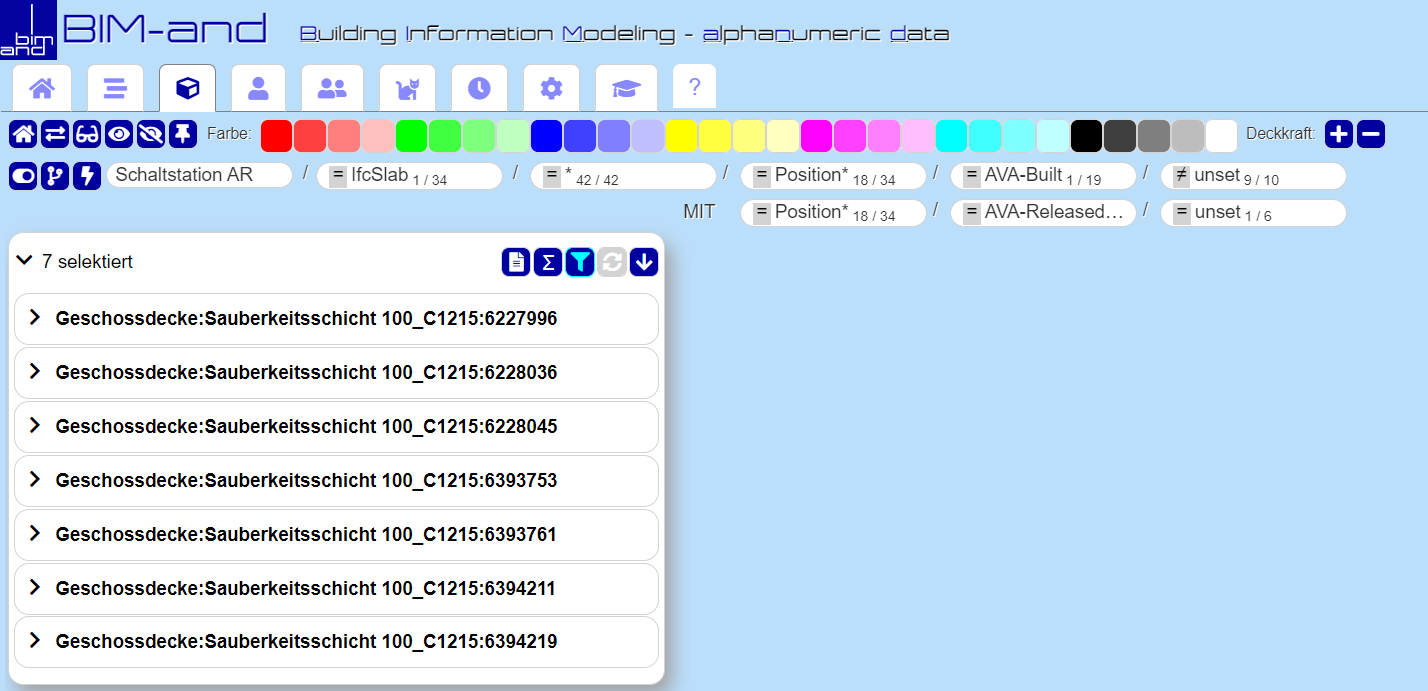

In the example shown, all building elements of type “IfcSlab” are shown where the property AVA-Built has a value and the property AVA-Released does not have a value. The search identifies all created, but not yet been approved elements.

BIM-and^® supports arbitrarily nested logical operators for complex searches. The operator ‘WITH’, implemented by BIM-and^®, allows to find elements that have to meet more than one search criterion.
Searches can be nested any level deep in BIM-and^®

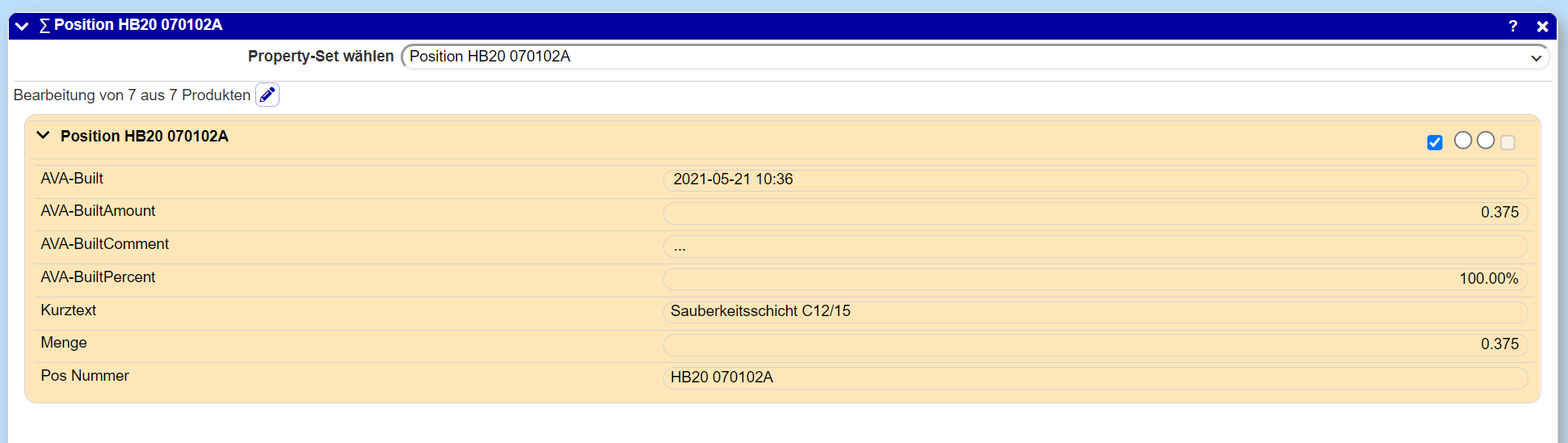

The elements found can of course be edited simultaneously in BIM-and^®

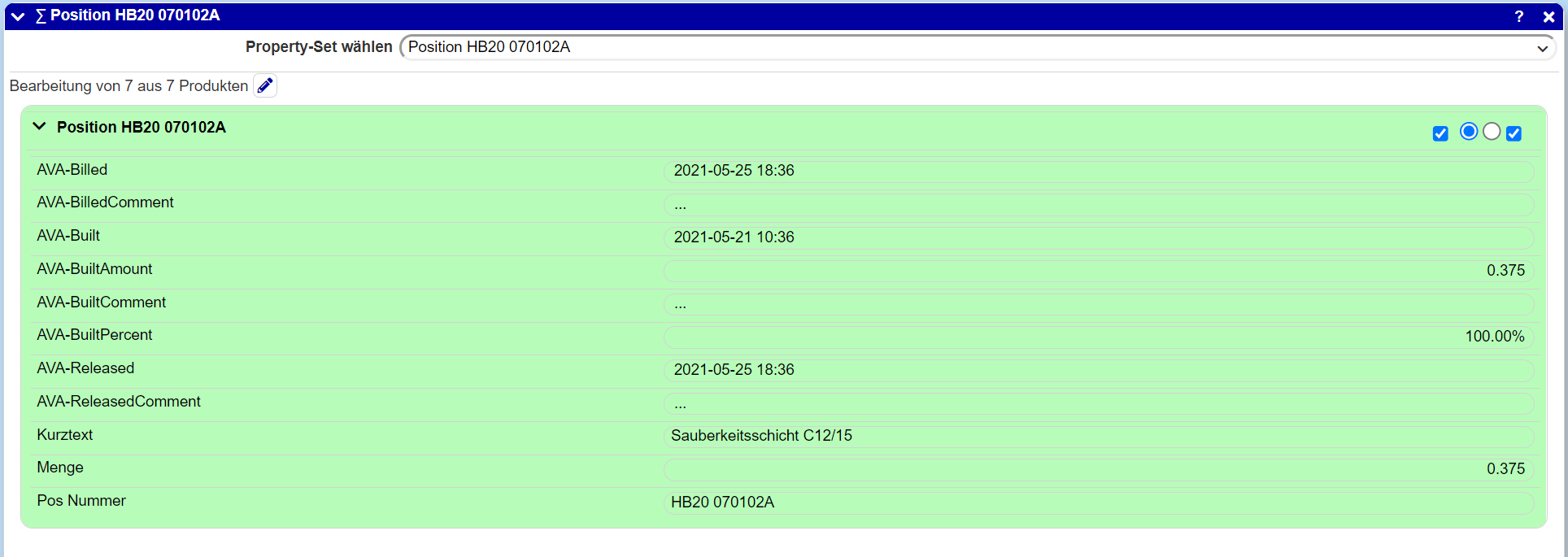

In the example above, all 7 Products can be released.
